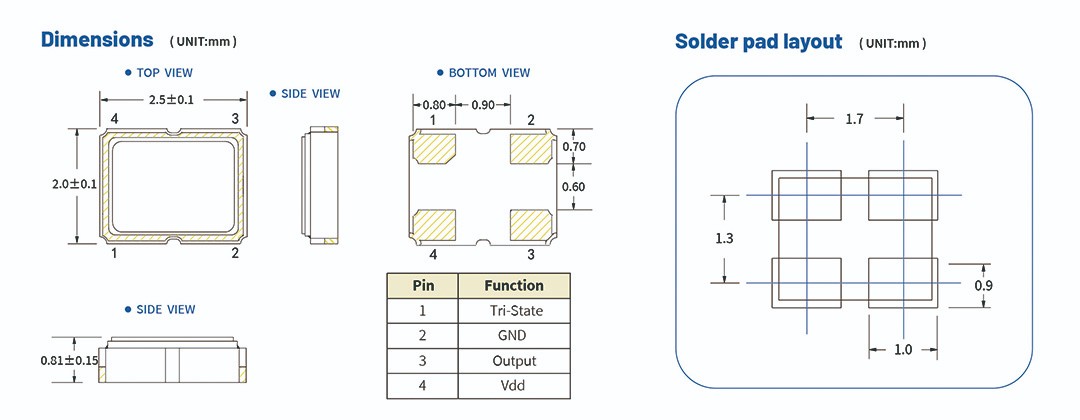

| Package Size: | 2.5×2.0×0.81 |
|---|---|
| Frequency: | 32.768 |
| Supply Voltage: | 1.8V, 2.5V, 3.3V |
| Temperature Range: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| Output Leve: | CMOS |
| FEATURES: | SPXO |
| RoHS And Pb Free: | |
| Files Download: | Datasheet |
| Shopping: | |
Item | Symb. | Min. | Typ. | Max. | Unit | Notes |
Frequency Range | Freq. | 32.768 | KHz | |||
Operating Temperature | T_use | -20 | +70 | ℃ | ||
-40 | +85 | ℃ | ||||
Storage Temperature Range | T_stg | -55 | +125 | ℃ | ||
Supply Voltage | Vdd | 1.62 | 1.8 2.5 3.3 | 3.63 | V | |
Output Load | L_CMOS | 15 | pF | |||
Current Consumption | Icc | 90 | μA | No load condition,Vdd=3.0V | ||
Duty Cycle | SYM | 45 | 55 | % | 50 % Vdd level, L_CMOS ≤ 15 pF | |
Rise / Fall Time | TR / TF | 25 | nS | 10% Vdd to 90% Level | ||
Start-up Time | T_str | 5 | mS | To 90% of Final Amplitude | ||
High output voltage | VOH | 0.9Vdd | V | |||
Low output voltage | VOL | 0.1Vdd | V | |||
Enable Voltage High (Logic 1) | VIH | 0.7Vdd | V | Output will be disable if OE is Logic 0 Output will be enable if OE is Logic 1 or open | ||
Enable Voltage Low (Logic 0) | VIL | 0.3Vdd | V | |||
Aging | f_age | 3 | ppm | 1st. Year at 25℃ |
Operating Temperature Range | Frequency Stability | |||
±20ppm | ±25ppm | ±30ppm | ±50ppm | |
-20℃ to +70℃ | ▲ | ★ | ★ | ★ |
-40℃ to +85℃ | ▲ | ★ | ★ | |
★：Available ▲：Conditional All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change. | ||||
|
Description of Requirement | |||||
Select the required packaging specifications and product series： 2.5×2.0mm；2CK Series Select the desired frequency： 32.768KHz Select the required supply voltage： 3.3V Select the required frequency tolerance（at 25℃）： ±20ppm Select the desired operating temperature range： -40℃~+85℃ Select the desired frequency and temperature characteristics： ±30ppm The product you need is： 2CK Series 32.768KHz 3.3V ±20ppm@25℃ ±30ppm@-40~+85℃ |
